| EFIS Control Panel |
| Glareshield - EFIS Control Panel 700/800/900 |
Captain or First Officer

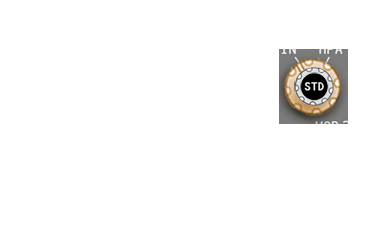

Barometric (BARO) Reference Selector
Outer (Two positions)
IN – selects inches of mercury as the barometric altitude reference.
HPA – selects hectopascals as the barometric altitude reference.
Middle (Slew - Hold and Release)
ROTATE –
Standard Inner (STD) Switch (Momentary action)
PUSH –
Outer (Two positions)
IN – selects inches of mercury as the barometric altitude reference.
HPA – selects hectopascals as the barometric altitude reference.
Middle (Slew - Hold and Release)
ROTATE –
- Adjusts the barometric altitude setting on the altitude tape.
- If STD displayed, adjusts the preselected BARO reference.
Standard Inner (STD) Switch (Momentary action)
PUSH –
- Selects the standard barometric setting (29.92 inches Hg/1013 HPA)
for barometric altitude reference. - If STD is displayed, selects the preselected barometric reference.
- If no preselected barometric is displayed, displays the last value
before STD was selected.
