| EFIS Control Panel |
| Glareshield - EFIS Control Panel 700/800/900 |
Captain or First Officer
MAP Switches
Momentary action
The MAP switches:

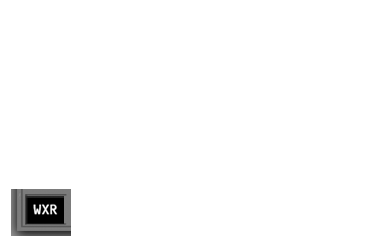

WXR (Weather radar) –
Energizes the weather radar transmitter and displays weather radar returns
in MAP, center MAP, expanded VOR and expanded APP modes. When the
640 nm range is selected, weather radar returns are limited to 320 nm.
Momentary action
The MAP switches:
- Add background data/symbols to MAP and center MAP modes.
- The displays can be selected simultaneously.
- A second push removes the information.
WXR (Weather radar) –
Energizes the weather radar transmitter and displays weather radar returns
in MAP, center MAP, expanded VOR and expanded APP modes. When the
640 nm range is selected, weather radar returns are limited to 320 nm.
Generated Data and Symbol when selected: (Typical)
| or |
