| EFIS Control Panel |
| Glareshield - EFIS Control Panel 700/800/900 |
Captain or First Officer
MAP Switches
Momentary action
The MAP switches:

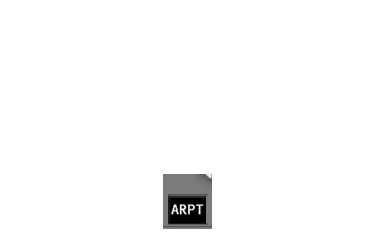

ARPT (Airport) –
Displays all airports which are stored in the FMC data base and which are
within the viewable map area.
Momentary action
The MAP switches:
- Add background data/symbols to MAP and center MAP modes.
- The displays can be selected simultaneously.
- A second push removes the information.
ARPT (Airport) –
Displays all airports which are stored in the FMC data base and which are
within the viewable map area.
Generated Data and Symbol when selected: (Typical)
