| EFIS Control Panel |
| Glareshield - EFIS Control Panel 700/800/900 |
Captain or First Officer
Generated Data and Symbol when selected: (Typical)
MAP Switches
Momentary action
The MAP switches:

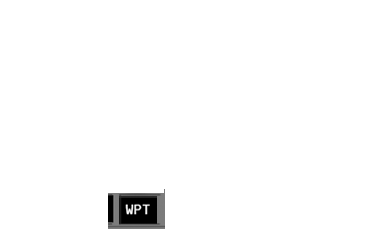

WPT (Waypoint) –
Displays the waypoints in the FMC data base which are not in the flight plan
route if the selected range is 40 nm or less.
Momentary action
The MAP switches:
- Add background data/symbols to MAP and center MAP modes.
- The displays can be selected simultaneously.
- A second push removes the information.
WPT (Waypoint) –
Displays the waypoints in the FMC data base which are not in the flight plan
route if the selected range is 40 nm or less.
