Display Selector
AC and DC Metering Panel
Tap the DC Meters Selector to advance to the next position.
or
Tap the DC Meters Label to advance to that position.

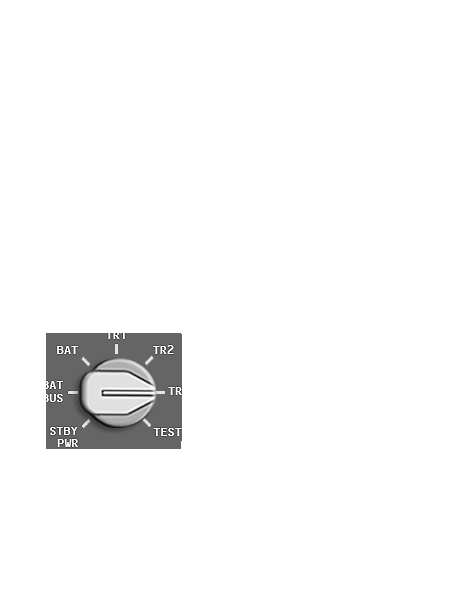

DC Meters Selector on TR 3

Measured at DC Bus 2

  • Typical Voltage 24 - 30 Volts

  • Typical Current (AMPS) - 20 - 25 Amps
