Display Selector
AC and DC Metering Panel

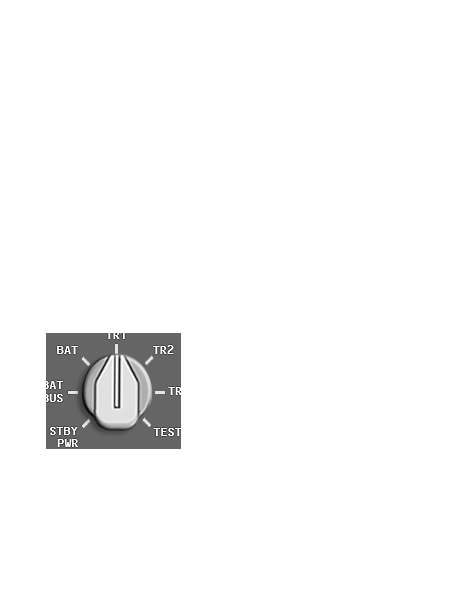

DC Meters Selector on TR 1

Volts measured at DC Bus 1
Amps measured at TR 1

  • Typical Voltage 24 - 30 Volts

  • Typical Current (AMPS) - 20 - 25 Amps
Tap the DC Meters Selector to advance to the next position.
or
Tap the DC Meters Label to advance to that position.
