| Display Selector |
| AC and DC Metering Panel |

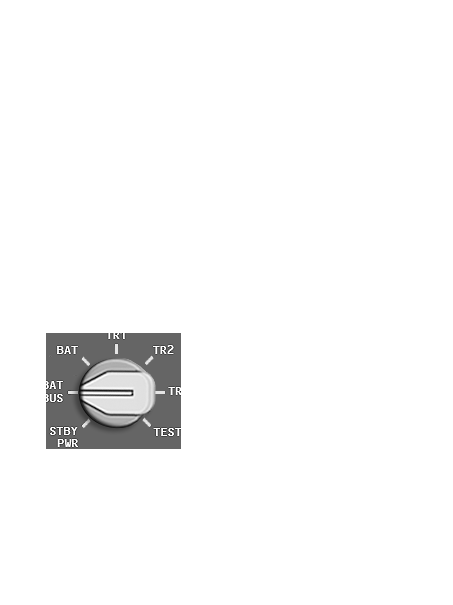

DC Meters Selector on BAT BUS
Measured at the Battery Bus
Measured at the Battery Bus
- Typical Voltage 24 - 30 Volts
- Typical Current (AMPS) - N/A
| Tap the DC Meters Selector to advance to the next position. or Tap the DC Meters Label to advance to that position. |
