| Display Selector |
| AC and DC Metering Panel |
| Tap the DC Meters Selector to advance to the next position. or Tap the DC Meters Label to advance to that position. |

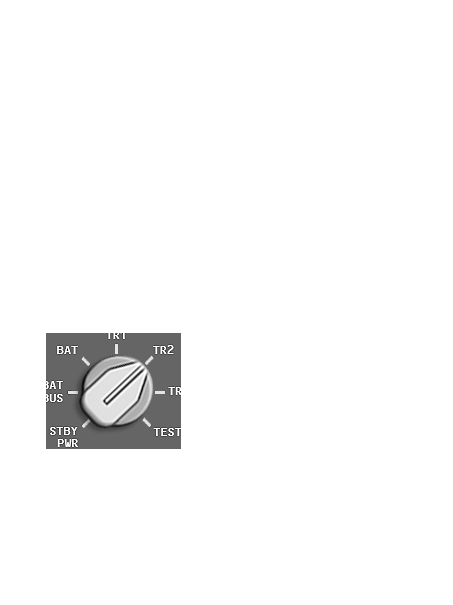

DC Meters Selector on TR 2
Volts measured at DC Bus 2
Amps measured at TR 2
Volts measured at DC Bus 2
Amps measured at TR 2
- Typical Voltage 24 - 30 Volts
- Typical Current (AMPS) - 20 - 25 Amps
1 1 2
3 9 7
1 8
| 2 8 |
| 2 4 |
