Display Selector
Cockpit Voice Recorder

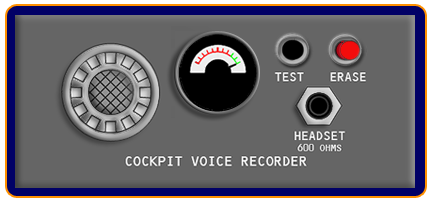

Monitor Indicator

Pointer deflection indicates:

  • During normal operation – The system is recording.

  • During ERASE – erasure on all four channel (approximately
    a one second delay)

  • During TEST –The pointer rises into green band.
