Thrust Reverser (Cont'd.)

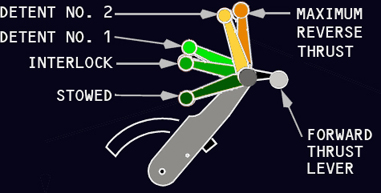

Downward motion of the reverse thrust lever past detent No. 1 (reverse idle thrust) initiates
the command to stow the reverser. When the lever reaches the full down position, the
control valve moves to the stow position allowing hydraulic pressure to stow and lock the
reverser sleeves. After the thrust reverser is stowed, the isolation valve closes and the
electro–mechanical lock engages.
