| Cargo Fire Panel |

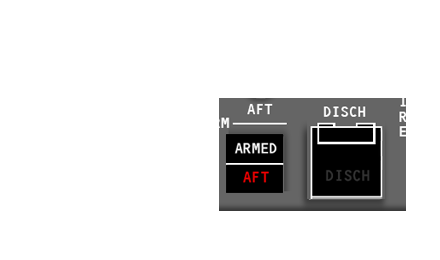

Cargo Fire Discharge (DISCH) Switch
PUSH -
If the system is armed, discharges the extinguisher bottle.
Option - Dual cargo fire extinguisher bottles.
If the system is armed, discharges the extinguisher bottle. A timer
is set for 60 minutes to discharge the second extinguisher bottle.
Cargo Fire Bottle Discharge (DISCH) Light
Illuminated -
Indicates the extinguisher bottle has discharged
Option - Dual cargo fire extinguisher bottles.
Indicates that either extinguisher bottle has discharged.
PUSH -
If the system is armed, discharges the extinguisher bottle.
Option - Dual cargo fire extinguisher bottles.
If the system is armed, discharges the extinguisher bottle. A timer
is set for 60 minutes to discharge the second extinguisher bottle.
Cargo Fire Bottle Discharge (DISCH) Light
Illuminated -
Indicates the extinguisher bottle has discharged
Option - Dual cargo fire extinguisher bottles.
Indicates that either extinguisher bottle has discharged.
